1064/532nm YAG Laser Tattoo Removal Machine US412C

YOUR TOP SOURCE FOR

1064/532nm YAG Laser Tattoo Removal Machine US412C

New Removal Tattoo Laser Machine ND YAG Laser Tattoo Pigmentation Removal Treatment with 1064nm 532nm


Product Description


1064/532nm YAG Laser Tattoo Removal Machine US412C


Advantage


1) Auto-Calibration & Self-Restoration
Energy is always kept within the ideal range even without regular visits by an Engineer.

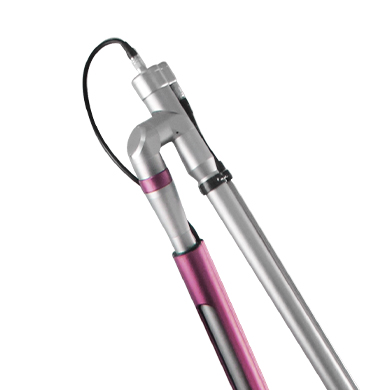

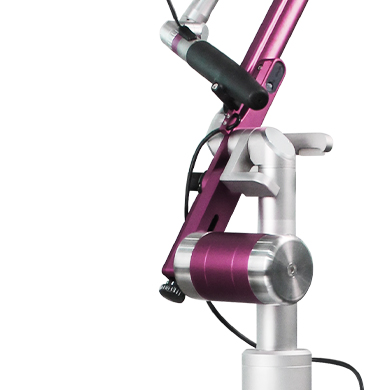

2) Korea Imported Laser Arm
High laser transmission (>=95%), double shock-resistant setting, and adjustable balance weight available, achieve stable laser output, and longer lifespan.

3) Adjustable Aiming Beam
The brightness of the red aiming beam can be adjusted according to the lesion or skin color, achieve accurate treatment even on tiny spots.

4) Auto-Detected Spot Size, 2-10mm, adjustable
Spot size change is available without replacing the tip, and automatically detected by the laser system for user convenience and safety, also selective treatment of various areas is available.

5) Uniform Top Hat Beam Profile
Guarantees uniform distribution of laser energy, thus reduces side effects such as PIH.

6) High Peak Power & Shortest Pulse Width
Delivers efficient destruction of the target pigment with minimal collateral thermal damage, meeting the criteria of selective photo-thermolysis.

7) Trio Clustered Pulsed Nd:YAG Laser
Q-Single Model: up to 1500mj, 2-6ns
Q-Double Mode: up to 2600mj, 2-6ns
Quasi-Long Mode: up to 3000mj, 300μs

1064/532nm YAG Laser Tattoo Removal Machine US412C

Application


1. Pigment deposit dispelling.
2. Tattoo removal: Can remove black, blue, brown, green and red tattoo pigments, On eyebrow, eyeline, lipline and Other parts of body.
3. Eliminate the age pigment, spot, birthmark, and pigment changes.

PRODUCT PARAMENTERS


Model No.
412C
Laser type
Q Switch ND:YAG Laser,Electro-optic
Laser Wavelength
1064nm/532nm
Display Screen
8'' color Touch Screen
Power Supply
1500W
Laser Mode
Single/Dual/Long Pulse
Max Energy
Single Pulse
1500mj@1064nm;800mj@532nm
Double Pulse
2600mj@1064nm;1300mj@532nm
Quasi-Long Pulse
3000mj@1064nm
Pulse Width
2-6ns @ Q Switched Mode;300us@Quasi-Long
Frquency
1HZ-10HZ
Laser Arm
Korea Imported,7 Articular Optical Arm
Spot Diameter
2mm-10mm Adjustable
Red Aiming Beam
Semiconductor 650nm,brigthness adjustable
Package size
110*56*104cm
Gross weight
103kg
Voltage
220V or 110V


ADVANTAGE ACCESSORIES

WHY CHOOSE US?

  • 1064/532nm YAG Laser Tattoo Removal Machine US412C

  • 1064/532nm YAG Laser Tattoo Removal Machine US412C

  • 1064/532nm YAG Laser Tattoo Removal Machine US412C

  • 1064/532nm YAG Laser Tattoo Removal Machine US412C

  • 1064/532nm YAG Laser Tattoo Removal Machine US412C

  • 1064/532nm YAG Laser Tattoo Removal Machine US412C

1064/532nm YAG Laser Tattoo Removal Machine US412C

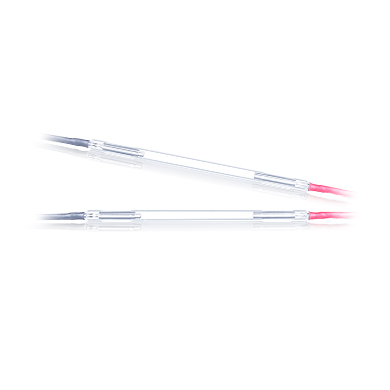

Xenon Lamp

Long life span, up to 5 million times.

1064/532nm YAG Laser Tattoo Removal Machine US412C

Adjustable Aiming Beam

The brightness of the red aiming beam can be adjusted according to the lesion or skin color,achieve accurate treatment even on tiny spots.

1064/532nm YAG Laser Tattoo Removal Machine US412C

Auto-Calibration & Self-Restoration

Energy is always kept within the ideal range even without regular visits by an Engineer.

1064/532nm YAG Laser Tattoo Removal Machine US412C

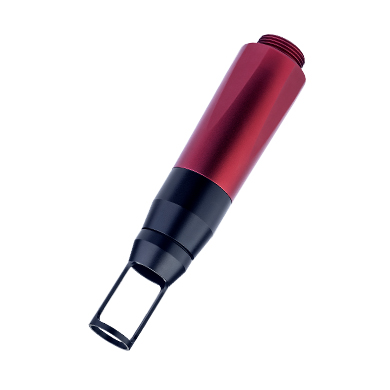

Skin Rejuvenation Probe

Skin care & skin whitening.

1064/532nm YAG Laser Tattoo Removal Machine US412C

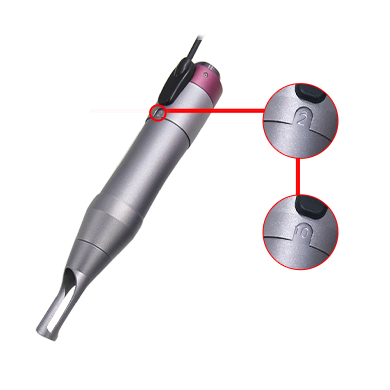

Auto-detected Spot Size , 2-10mm , Adjustable

Spot size change is available without replacing the tip ,and automatically detected by the laser system for user convenience and safety , also selective treatment of various areas is available.

1064/532nm YAG Laser Tattoo Removal Machine US412C

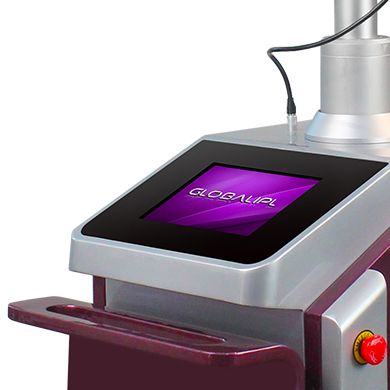

8” Color Touch Screen

Touch screen operation, convenient and flexible.

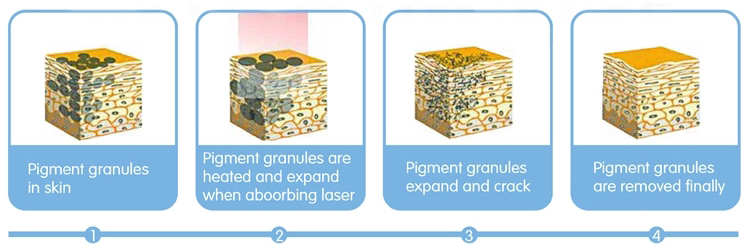

THEORY

1) Q-One
Q-One is a premium Q-switched Nd:YAG laser with extremely short pulse during sustained period can be used in wide variety of applications with high efficiency as it is a highly effectual cure in Pigment Lesions on epidermis and dermis. In addition, an outstanding advantage of Q-One is that laser is selectively absorbed only into melanin pigment without injuring adjacent tissues.

2) Q-Single Pulse Mode
532nm wavelength removes the pigmentation on epider- mis, such as freckles, lentigos and age spots mostly, while 1064nm wavelength cures lesions responding to the pigmentation located deep inside of dermis, such as the tattoo, nevus of ota.

3) Q-Double Pulse Mode
delivers twin-pulsed, high-output energy at very short intervals. As a pulse is divided into two in the Q-Double Mode, it is associated with less injury to the surrounding tissues, less pain and faster regeneration, compared to the previous single pulse, at the same energy output. It is also associated with less hypo-pigmentation, PIH (post-inflammatory hyper-pigmentation) and other adverse effects.

4) Quasi-Long Pulse Mode
Quasi-Long Mode (pulse width 300μs @ 1064nm) is a combination of toning and lifting which enables pigmented cells to absorb the laser selectively. It stimulates collagen by the destruction of pigmented cells, and it is useful to general skin for regenerating after peeling, improving loose skin, and minimizing large pores.

1064/532nm YAG Laser Tattoo Removal Machine US412C

FUNCTION

  • Tattoo on Brow Remove

    Tattoo on Brow Remove:

  • Lipline Removal

    Lipline Removal:

  • Tattoo Removal

    Tattoo Removal:

  • Nevus of Ota Removal

    Nevus of Ota Removal:

  • Skin Rejuvenation and Whitening

    Skin Rejuvenation and Whitening:

  • Removing Color Spots

    Removing Color Spots:
